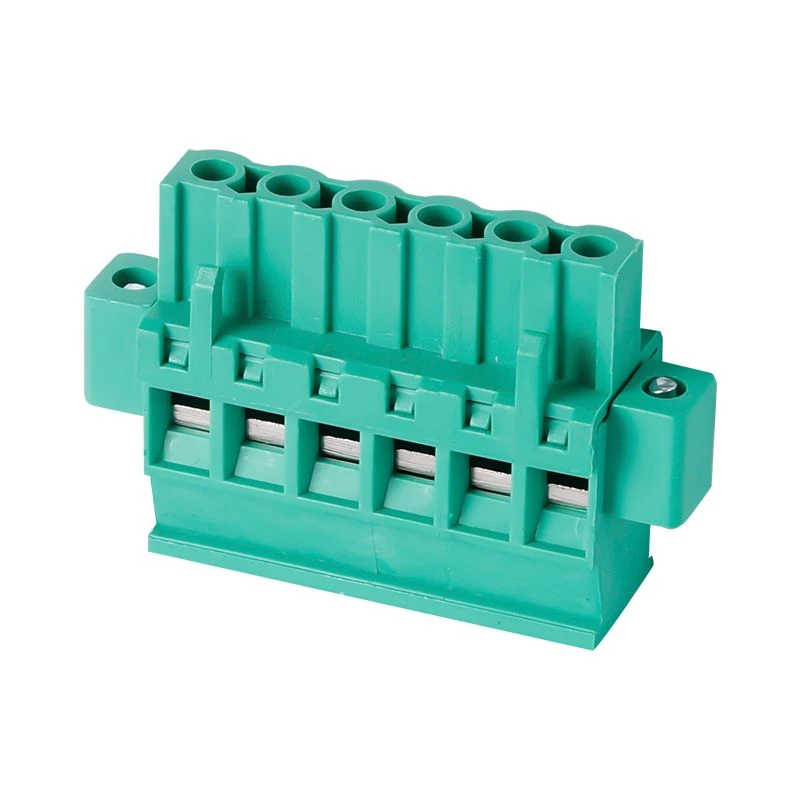

XC2EDGKAM-5.0
Peb cov qauv tsim lub davhlau ya nyob twg feem ntau ua raws li UL thiab IEC cov cai. Txawm li cas los xij, rau qee qhov ntsuas hluav taws xob, lwm cov qauv yuav raug siv, xws li cov kev ntsuas kub siab - thiab qis - ntsuas kub.
Kev xaiv cov khoom ncaj qha cuam tshuam rau tag nrho cov khoom ua tau zoo thiab yog qhov tseem ceeb ntawm kev tsim qauv. Cov khoom siv davhlau ya nyob twg siv yog cov nplaim hluav taws kub heev-cov khoom siv hluav taws xob tsis zoo, ib puag ncig tus phooj ywg PA66 yas.
Cov qauv tsim khoom kuj tseem ceeb heev thiab tso siab rau kev paub dhau los, tsis muaj qhov luv. Txhua series muaj nws tus yam ntxwv nyob rau hauv no hais txog. Piv txwv li, cov teeb meem deformation nyob rau hauv ntev - ntev spliced khoom ua ke yog feem ntau yog tshwm sim los ntawm ib tug tsis tsim nyog qauv uas ua rau ib tug imbalance ntawm lub zog ntawm ob splicing tenons nyob rau hauv pem hauv ntej-rov qab, saum-hauv qab, thiab sab laug-txoj kev taw qhia. Yog li ntawd, lub zog thiab deformation cov lus qhia ntawm splicing tenons yuav tsum tau ua tib zoo txiav txim siab thaum lub sij hawm tsim qauv.
Peb cov neeg ua haujlwm technical tau mob siab rau kev siv zog ntau rau kev tshawb fawb thiab kev tsim khoom.
| UL/CUL Techical Hnub | |||
| Siv Pawg | B | C | D |
| Rated voltage (V) | 300 | . | 300 |
| Rated tam sim no (A) | 10 | . | 10 |
| Hlau Ntau Solid / Stranded (AWG) |
24-12 | ||
| Nrog VOLTAGE | 1600V / min | ||
| IEC Techical Hnub | |||
| Qeb Overvoltage | Ⅲ | Ⅲ | Ⅱ |
| Chav Kawm Kev Tiv Thaiv | 3 | 2 | 2 |
| Rated voltage (V) | . | 320 | 630 |
| Rated tam sim no (A) | . | 15 | 15 |
| Impulse Nrog Voltagea (KV) | . | 4.0 | 4.0 |
| Tus neeg xyuas pib hla ntu Khoom / Flexible (mm³) |
2.5 | ||
| Khoom siv | |||
| Lnsulation Khoom | Thermoplastic | ||
| Khoom siv Contactor | Copper alloy | ||
| Kev tiv thaiv txheej | Nws plated | ||
| Neeg kho tshuab | |||
| Pitch (mm) | 5.00 | ||
| Ncej (p) | 2-24 | ||
| Stripping Ntev (mm) | 7-8 | ||
| Ntsia Hlau / Torque (Max) (NM) | M2.5/0.4 | ||
| Ua haujlwm kub (degree) | -40-+105 | ||
| Pin Dimensions | . | ||
| PCB qhov taub (mm) | . | ||
